Pivot Hinge

This hinge is fixed in the top and bottom of the door. The design is slim, so it does not interfere with the design of the door. Once the bottom part is fixed, the upper part is easily set by pulling down the upper pin and put it back in place. Once installed, the front-back, right-left, up-down adjustment can be made easily using a screwdriver. This type of hinge is very durable as it has passed 200,000 operation tests, and it is also available in four high-quality finishing colors.
Show a price list

Material

〈Main unit〉
Steel, ZDC
〈Cover〉
Resin

Type / Finish / Color

Gold Painting
Silver Painting
Satin Silver
Chrome Plating

Included screw

〈Upper Bracket〉
3.5×25 Flat head tapping screw 4pcs
〈Lower Bracket〉
3.5×25 Flat head wood screw 3pcs
〈Main unit〉
3.5×30 Flat head tapping screw 6pcs

Withstand load

30kg(294N)

Adjusting Range

Front-Back±2
Left-Right±2
Up-Down +2mm, -4mm

Images

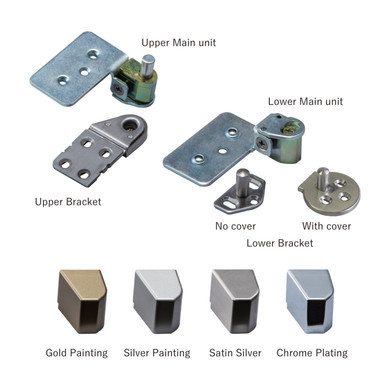

Pivot Hinge
Upper
Lower
There are LH and RH.
Drawing sheet (PDF)

The price list of Pivot Hinge

* You can buy the products with Buy button at our on-line shop.
Product No Product specification Price Buy
215-011 Left-Hand Color:Gold Painting
Lower Bracket:No cover
$ 35.20 Contact us
215-012 Left-Hand Color:Silver Painting
Lower Bracket:No cover
$ 35.20 Contact us
215-013 Left-Hand Color:Satin Silver
Lower Bracket:No cover
$ 35.20 Contact us
215-014 Left-Hand Color:Chrome Plating
Lower Bracket:No cover
$ 35.20 Contact us
215-015 Right-Hand Color:Gold Painting
Lower Bracket:No cover
$ 35.20 Contact us
215-016 Right-Hand Color:Silver Painting
Lower Bracket:No cover
$ 35.20 Contact us
215-017 Right-Hand Color:Satin Silver
Lower Bracket:No cover
$ 35.20 Contact us
215-018 Right-Hand Color:Chrome Plating
Lower Bracket:No cover
$ 35.20 Contact us
215-011N Left-Hand Color:Gold Painting
Lower Bracket:With cover
$ 41.80 Contact us
215-012N Left-Hand Color:Silver Painting
Lower Bracket:With cover
$ 41.80 Contact us
215-013N Left-Hand Color:Satin Silver
Lower Bracket:With cover
$ 41.80 Contact us
215-014N Left-Hand Color:Chrome Plating
Lower Bracket:With cover
$ 41.80 Contact us
215-015N Right-Hand Color:Gold Painting
Lower Bracket:With cover
$ 41.80 Contact us
215-016N Right-Hand Color:Silver Painting
Lower Bracket:With cover
$ 41.80 Contact us
215-017N Right-Hand Color:Satin Silver
Lower Bracket:With cover
$ 41.80 Contact us
215-018N Right-Hand Color:Chrome Plating
Lower Bracket:With cover
$ 41.80 Contact us
